Application of Soarnol™

Food packaging

Film

Almost the half of a demand of SoarnoL comes from a package for meat and cheese. The demand for this application is continuously growing by request for “thinner and higher barrier” packaging from a market. SoarnoL is suitable material for vacuum packaging and MAP packaging which fills nitrogen and carbon dioxide in it. Also the barrier property of SoarnoL is higher than those of polyamide and PVDC (poly vinylidene chloride), it is possible to reduce a weight of such packaging by down gauging barrier layer thickness.
We, Mitsubishi chemical, has Soarnol™ grades applicable for wide range of packaging style. For BIB (Bag In Box) application, SoarnoL SF series which has good frex crack resistance is suitable. G-SoarnoLTM is designed for shrink and skin pack application. And for retort application, retort type SoarnoL is used which has improved anti whitening and delamination properties.

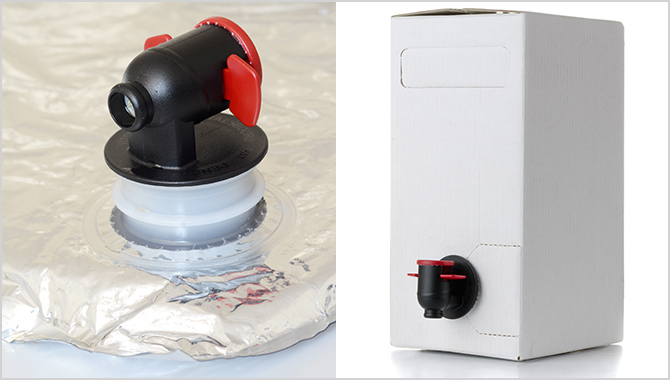

  • BIB (Bag In Box)BIB (Bag In Box)

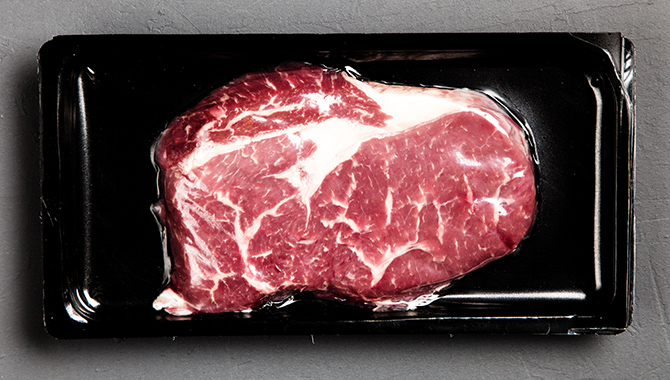

  • Skin packSkin pack

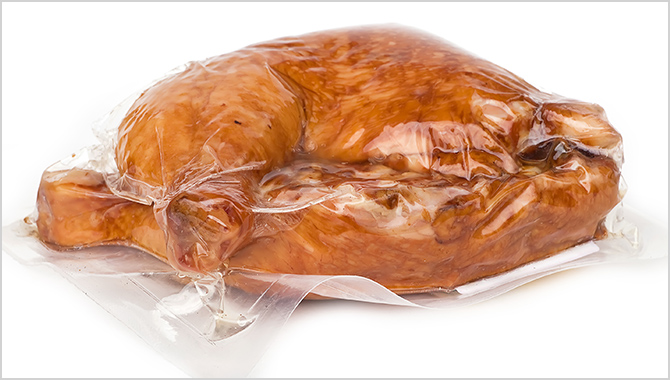

  • Vacuum packagingVacuum packaging
Application, packaging style Structure example (Outer / Inner)
Skin pack film EVA / tie / Soarnol™ / tie /EVA
PE / PE / tie / Soarnol™ / tie / PE / PE
Bag In Box PE / tie / Soarnol™ / tie / PE
Balloon PA / Soarnol™/
PA / tie / PE
BOPP film
(for snacks and Filled bread)
PP / tie / Soarnol™ / tie / PP
Thermoformed film
(boiled chicken breast, ham, cheese,
pre baked bread, fresh meat,
cooked meat etc.)
PA / tie / PA /
Soarnol™ / PA / tie / PE

PP / tie / PA /
Soarnol™ / PA / tie / PE

PA / Soarnol™
/ PA / tie / PE

Features of Soarnol™

Bottle

45 years ago, in 1974, SoarnoL was started to be used as a middle layer of mayonnaise bottle. By shutting out oxygen which is a major cause of a quality of mayonnaise, a shelf life is improved very much.
Nowadays, Soarnol™ is widely used for food packaging bottle of oils, soy sauce and seasonings thanks to its high gas barrier property and also substituting grass jar because of easy handling and light weight.
Recently, two-ply bottle becomes famous for soy sauce and for this application, Soarnol™ is also essential material for this bottle.

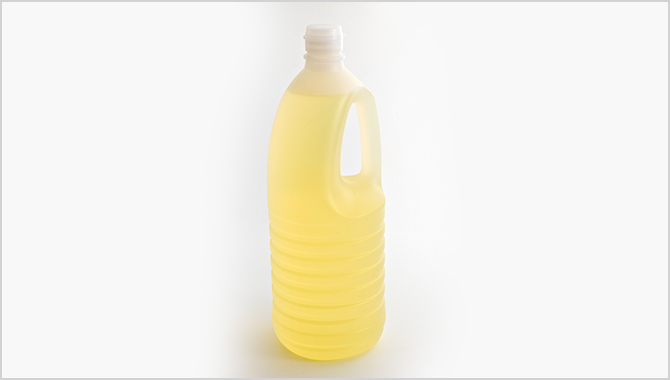

  • Edible oil bottle
    Edible oil bottle

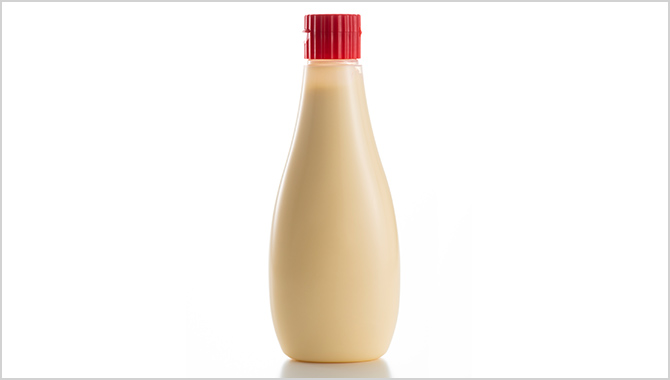

  • Mayonnaise
    Mayonnaise

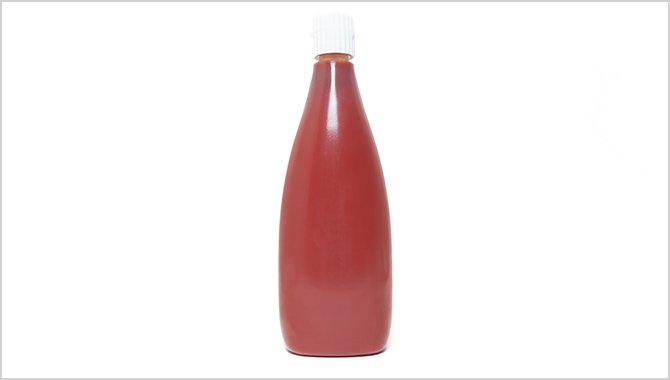

  • Ketchup
    Ketchup
Application, packaging style Structure example (Outer / Inner)
Mayonnaise bottle PE / tie / Soarnol™ / tie / PE
PE / Reg / tie / Soarnol™ / tie / PE
Ketchup bottle PE / tie / Soarnol™ / tie / PE
PP/ Reg / tie/ Soarnol™ / tie / PE
PET / Soarnol™ /
PET (Injection Stretch Blow Molding)
Edible oil bottle HDPE / Reg / tie / Soarnol™ / tie / HDPE
Two-ply bottle PPO (outer layer) / (blank space)/ Soarnol™ / tie / PE

*Reg = Regrind layer (scrap returning layer)

Features of Soarnol™

Tube

Soarnol™ is widely used for seasoning (horse radish, mustard and garlic paste), butter and tomato paste tubes. High barrier properties of Soarnol™ reduces oxidation of contents as well as release of flavors so such a tube keeps good flavor of horse radish longer or strong smell of garlic inside.

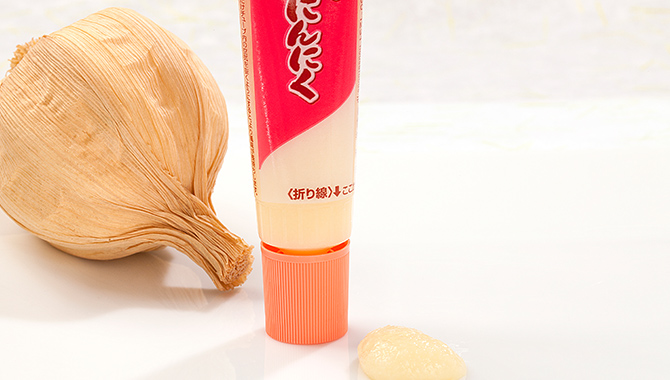

  • Seasoning tube
Application, packaging style Structure example (Outer / Inner)
Seasoning tube PE / tie / Soarnol™ / tie / PE
PE / Reg / tie / Soarnol™ / tie / PE

*Reg = Regrind layer (scrap returning layer)

Features of Soarnol™

Cup, tray

Mitsubishi Chemical developed thermoforming grades which has wider thermoformability and transparency compare to conventional EVOH. These grades are widely used not only for trays and cups for ready meal and jelly, but also for deep draw cup for chilled drink and cup for sweets required high transparency. Recently a demand of baby food cup to substitute metal can is increasing. Furthermore, Soarnol™ is used for coffee capsules due to an increasing demand of single serve coffee machine in US and Europe.

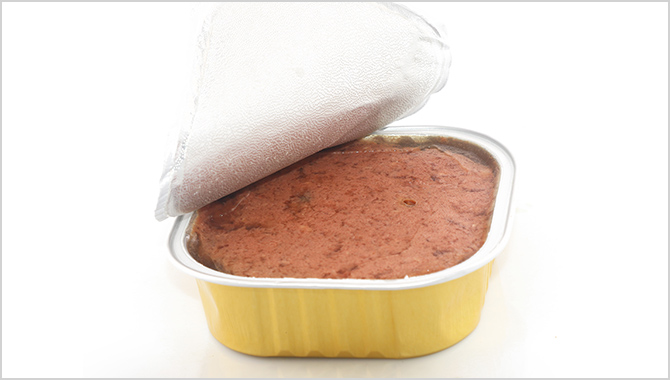

  • Pet food trayPet food tray
  • Chilled drinkChilled drink

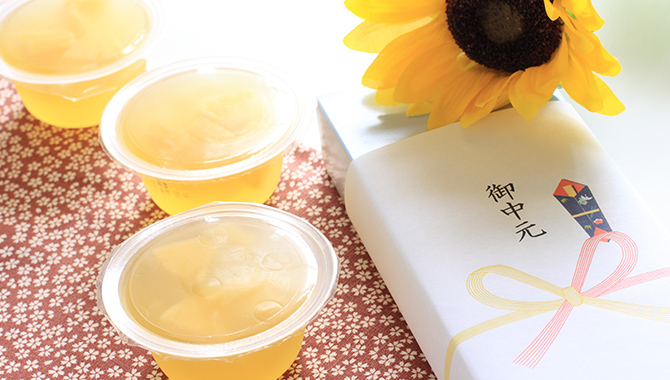

  • Jelly cup with high transparencyJelly cup with high transparency

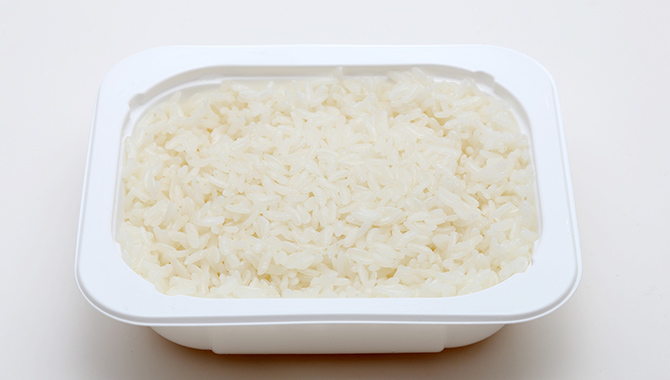

  • Cooked riceCooked rice

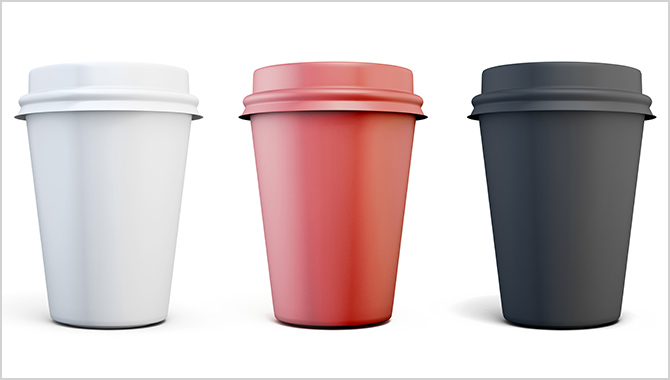

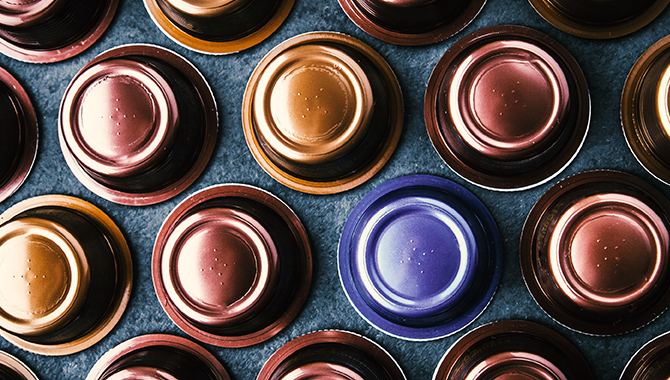

  • Coffee capsuleCoffee capsule
Application, packaging style Structure example (Outer / Inner)
Jelly cup PP / tie / Soarnol™ / tie / PP
Chilled drink PSt / tie / Soarnol™ / tie / PSt
Single serve coffee capsule PSt / tie / Soarnol™ / tie / PSt
PP / tie / Soarnol™ / tie / PP
PP / Soarnol™ / PP(injection molding)
Cooked rice, baby food, pet food PP/ Reg / tie / Soarnol™ / tie / Reg / PP

*Reg = Regrind layer (scrap returning layer)

Features of Soarnol™

Coating

Soarnol™ can be coated onto base film and paper. Not only a pellet type for extrusion coating application, but also Soarnol™ solution type is available.

Co-extrusion coating

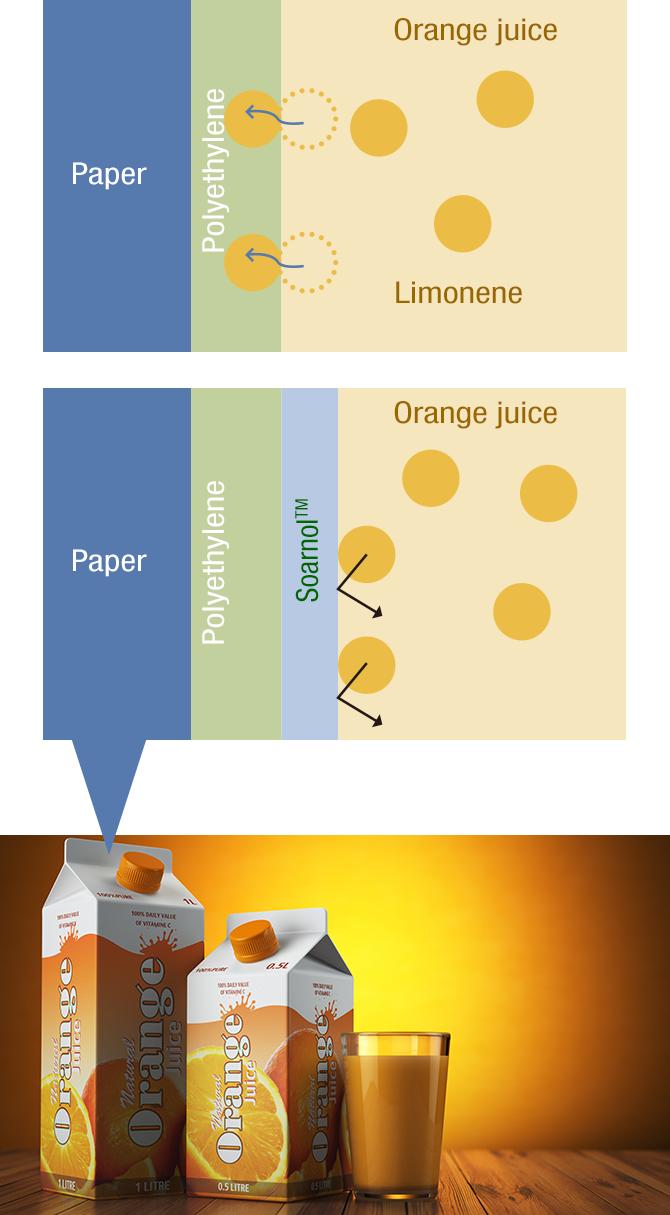

One example for co-extrusion coating of Soarnol™ is a paper carton for orange juice. Conventional paper carton has polyethylene as innermost layer but it absorbs limonene which is a main substrate of orange flavor so that it loses original taste. On the other hands, Soarnol™ has abilities to protect such absorption and migration so by coating Soarnol™, it’s possible to reduce a deterioration of a taste. Additionally, Soarnol™ prevent an oxidation of vitamin C and this keeps original taste of orange juice longer.

Orange juice, fruit juice seasoningOrange juice, fruit juice seasoningOrange juice, fruit juice seasoning
Application, packaging style Structure example (Outer / Inner)
Orange juice Paper carton/
Soarnol™ coating

Features of Soarnol™

  • ・Flavor barrier, keep freshness longer

Recommended grades

Solution coating

Freshness keeping film for fruits and vegetables are examples of Soarnol™ solution coating applications.
These contents keep breezing even after harvesting and release moisture so if they are packed with polypropylene etc., condensed droplets becomes a root cause of corruption of contents. Coating of Soarnol™ makes a film hydrophilic and this reduce a generation of droplets.

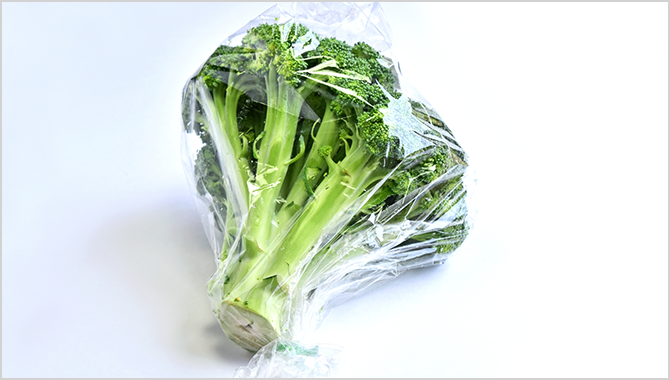

  • Package for fruits and vegetablesPackage for fruits and vegetables

Anti-fog effect due to a hydrophilicity of Soarnol™

Anti-fog effect due to a hydrophilicity of Soarnol™Anti-fog effect due to a hydrophilicity of Soarnol™
Application, packaging style Structure example (Outer / Inner)
Package for fruits and vegetable OPP(Base film) / AC agent / Soarnol™

Features of Soarnol™

  • ・Hydrophilicity : prevent corruption by condensed droplets
    For more detail about solution coating, please contact below;
