Soarnol™grades

Flex crack resistance grades SF series

High stiffness is one of the weak point of Soarnol™ especially application require flex crack resistance. Soarnol™ SF series has far higher flex crack resistance than that of conventional EVOH. After development of this grades, application of Soarnol™ became wider than before.

Relationship between flexural time vs oxygen
transmission rate

Evaluated oxygen transmission rate after flexural test.
In case of conventional EVOH, gas barrier property deteriorated after a few hundred times flexural but SF grade keeps its property even after 500 cycle flexural.

Relationship between flexural time vs oxygen transmission rate
Relationship between flexural time vs oxygen transmission rate
Sample:
LL/Tie/EVOH/Tie/LL=50/5/10/5/50μm Total120μm(multilayer film)
Flexural condition:
440˚ twist in 9.98 cm stroke + 6.35 cm straight stroke
23℃,50%RH,average of N = 3
OTR measurement conditions:
20℃,65%RH

Application

Bag In Box (BIB), vacuum packaging

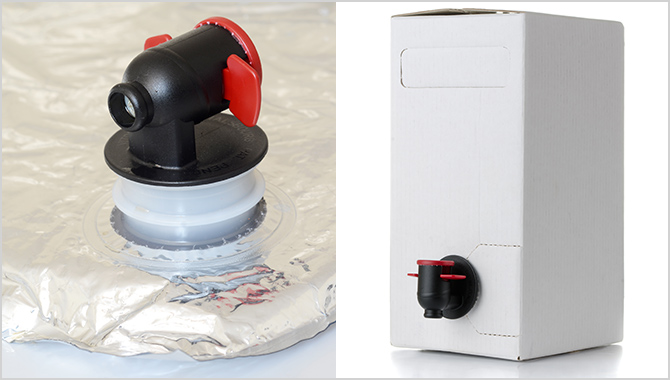

  • BIBBIB

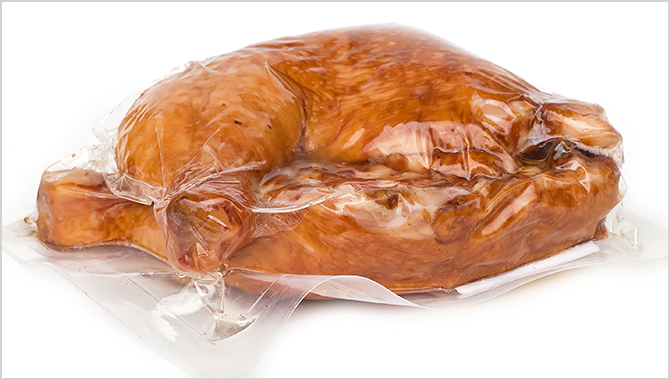

  • 真空包装vacuum packaging

For more detail, please contact below;

Soarnol Unit
TEL:+81 3 6748 7803
